Motherboards

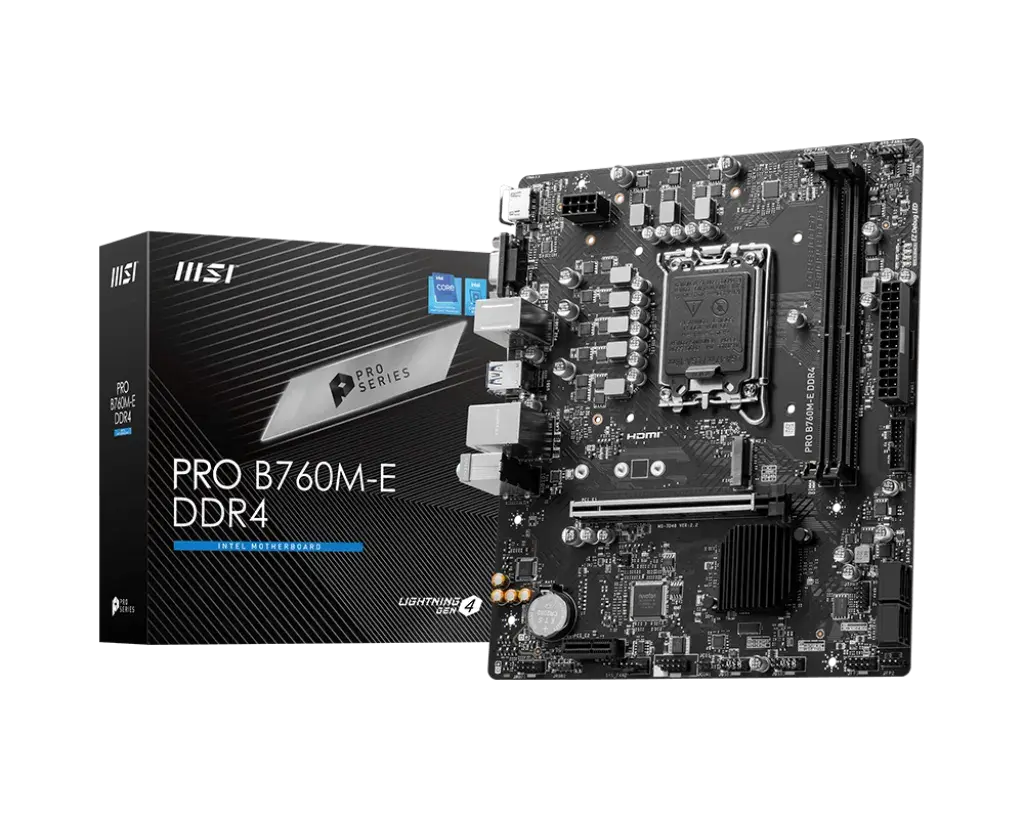

MSI PRO B760 M-E DDR4 Motherboard | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Storage:1x M.2M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.Onboard Graphics:1x HDMI™Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*1x VGASupport VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Almost Gone! Only 1 left in stock
NPR 21,500
Prices include VAT & Taxes
Free delivery by Monday, March 2
Order within 2 hours
Quantity:
1
Free ShippingOver 5K
Warranty1 Year
BrandMotherboards
Modelmsi-pro-b760-m-e-ddr4-motherboard-price-nepal
CategoryMotherboards
CPUSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700
ChipsetINTEL B760
BACK PANEL PORTSHDMI™VGAKeyboard / MouseUSB 3.2 Gen 1 5Gbps (Type-A)LAN portAudio ConnectorsUSB 2.0USB 2.0
Memory2x DDR4, Maximum Memory Capacity 64GBMemory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)Max. overclocking frequency:• 1DPC 1R Max speed up to 4800+ MHz• 1DPC 2R Max speed up to 4600+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP)
Storage1x M.2M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
Onboard Graphics1x HDMI™Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*1x VGASupport VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
LANRealtek® RTL8111H Gigabit LAN
USB4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)
Slot1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to (From CPU)PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
AudioRealtek® ALC897 Codec7.1-Channel High Definition Audio
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
Operating SystemSupport for Windows® 11 64-bit, Windows® 10 64-bit
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
BrandMotherboards
Categoryoffice-components/pc-components/motherboards
PCB InfomATX200mmx236.16mm
Internal IO1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)2x USB 2.0 ports1x USB 5Gbps Type A ports
LED FEATURE4x EZ Debug LED
