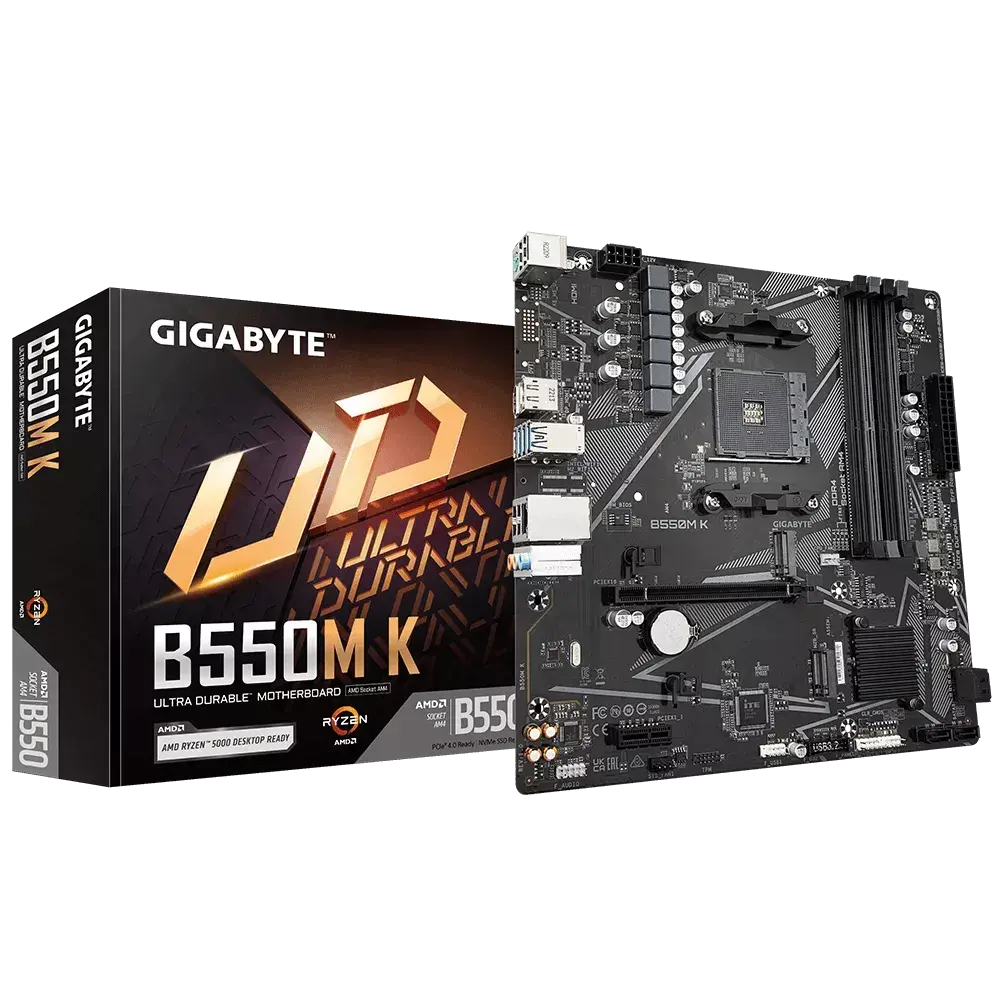

Gigabyte B550M K AMD AM4 Micro ATX Motherboard
Supported Storage:1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDsAMD Ryzen 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:Supporting PCIe 3.0 x2 SSDs4 x SATA 6Gb/s connectors, integrated in the Chipset:Graphics:Integrated Graphics Processor:1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Display Port (s):1 x DisplayPort
Almost Gone! Only 1 left in stock
NPR 19,000
Prices include VAT & Taxes
Free delivery by Monday, March 2
Order within 2 hours
Quantity:
1
Free ShippingOver 5K
Warranty1 Year
BrandMotherboards
Modelgigabyte-b550m-k-motherboard
CategoryMotherboards
ChipsetAMD B550
Supported CPUAMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Display Port (s)1 x DisplayPort
Maximum Memory128 GB
Supported MemorySupport for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules** ECC memory (ECC mode) support varies by CPUSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules
Max Shared Memory16 GB
Supported Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:AMD Ryzen 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDsAMD Ryzen 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:Supporting PCIe 3.0 x2 SSDs4 x SATA 6Gb/s connectors, integrated in the Chipset:
GraphicsIntegrated Graphics Processor:1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
LAN Port (s)Realtek GbE LAN chip (1 Gbps/100 Mbps)
HDMI1 x HDMI
Audio3 x audio jacks
Slots4 x DIMM
USB (s)CPU:4 x USB 3.2 Gen 1 ports on the back panelChipset:2 x USB 3.2 Gen 1 ports available through the internal USB header6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Ports1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Clear CMOS jumper
BIOS1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
PCI1 x PCI Express x16 slot, integrated in the CPU:AMD Ryzen 5000 Series/3000 Series Processors support PCIe 4.0 x16 modeAMD Ryzen 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode1 x PCI Express x1 slot, integrated in the Chipset:Supporting PCIe 3.0 x1 mode
RAIDSupport for RAID 0, RAID 1, and RAID 10
TypeDDR4
BrandMotherboards
Categoryoffice-components/pc-components/motherboards
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
Bundled SoftwareNorton Internet Security (OEM version)LAN bandwidth management software
Special FeaturesSupport for APP Center@BIOSEasyTuneSmart BackupSystem Information ViewerSupport for Q-FlashSupport for Xpress Install
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
