Asus TUF B450M-Pro Gaming Motherboard - AMD B450 mATX w/ Aura Sync RGB LED lighting
Storage:3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1AMD Athlon™ with Radeon™ Vega Graphics Processors :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)*13rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :2 x SATA 6Gb/s port(s)Support Raid 0, 1, 10AMD B450 chipset :1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*24 x SATA 6Gb/s port(s)Support Raid 0, 1, 10
Almost Gone! Only 1 left in stock
NPR 20,000
Prices include VAT & Taxes
Free delivery by Monday, March 2
Order within 2 hours
Quantity:
1
Free ShippingOver 5K
Warranty1 Year
BrandMotherboards
Modelasus-tuf-b450m-pro-gaming-motherboard-price-nepal
CategoryMotherboards
CPUAMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
ChipsetAMD B450
Memory3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered MemoryDual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.
Storage3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1AMD Athlon™ with Radeon™ Vega Graphics Processors :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)*13rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :2 x SATA 6Gb/s port(s)Support Raid 0, 1, 10AMD B450 chipset :1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*24 x SATA 6Gb/s port(s)Support Raid 0, 1, 10
Multi GPU SupportSupports AMD CrossFireX™ Technology
LanRealtek® RTL8111HTUF LANGuard
AudioRealtek® ALC S1200A 8-Channel High Definition Audio CODEC *3Audio Feature :- Exclusive DTS Custom for GAMING Headsets.- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality
Usb Port3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)AMD B450 chipset :1 x USB 3.1 Gen 2 port(s) (1 at back panel, )AMD B450 chipset :2 x USB 3.1 Gen 1 port(s) (2 at mid-board)AMD B450 chipset :6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)1 x DVI-D1 x HDMI1 x LAN (RJ45) port(s)1 x USB 3.1 Gen 2 Type-A,1 x USB 3.1 Gen 1 USB Type-CTM2 x USB 3.1 Gen 1 (blue) Type-A2 x USB 2.03 x Audio jack(s)
Expansion Slot3rd/2nd/1st Gen AMD Ryzen™ Processors1 x PCIe 3.0/2.0 x16 (x16 mode)2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (x8 mode)AMD Athlon™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (max at x4 mode)AMD B450 chipset1 x PCIe 2.0 x16 (max at x4 mode)1 x PCIe 2.0 x1
Internal I/O Ports2 x Aura RGB Strip Header1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)2 x Chassis Fan connector(s) (2 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Clear CMOS jumper(s)1 x COM port header1 x Speaker connector
Bios128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multilanguage BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite,Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Operating SystemsWindows® 10 64-bitWindows® 7 64-bit *2
Note*1 The M.2_1 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.*2 The M.2_2 Socket shares bandwidth with the SATA_3/4 ports, and therefore the SATA_3/4 ports cannot be used when an M.2 device is installed.*3 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.*4 To Support Windows 7 64-bit, It need to install an AMD Ryzen™ 2nd Generatione & Ryzen™ 1st Generation Processors.
BrandMotherboards
GraphicIntegrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics ProcessorsMulti-VGA output support: HDMI/DVI-D ports- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Categoryoffice-components/pc-components/motherboards

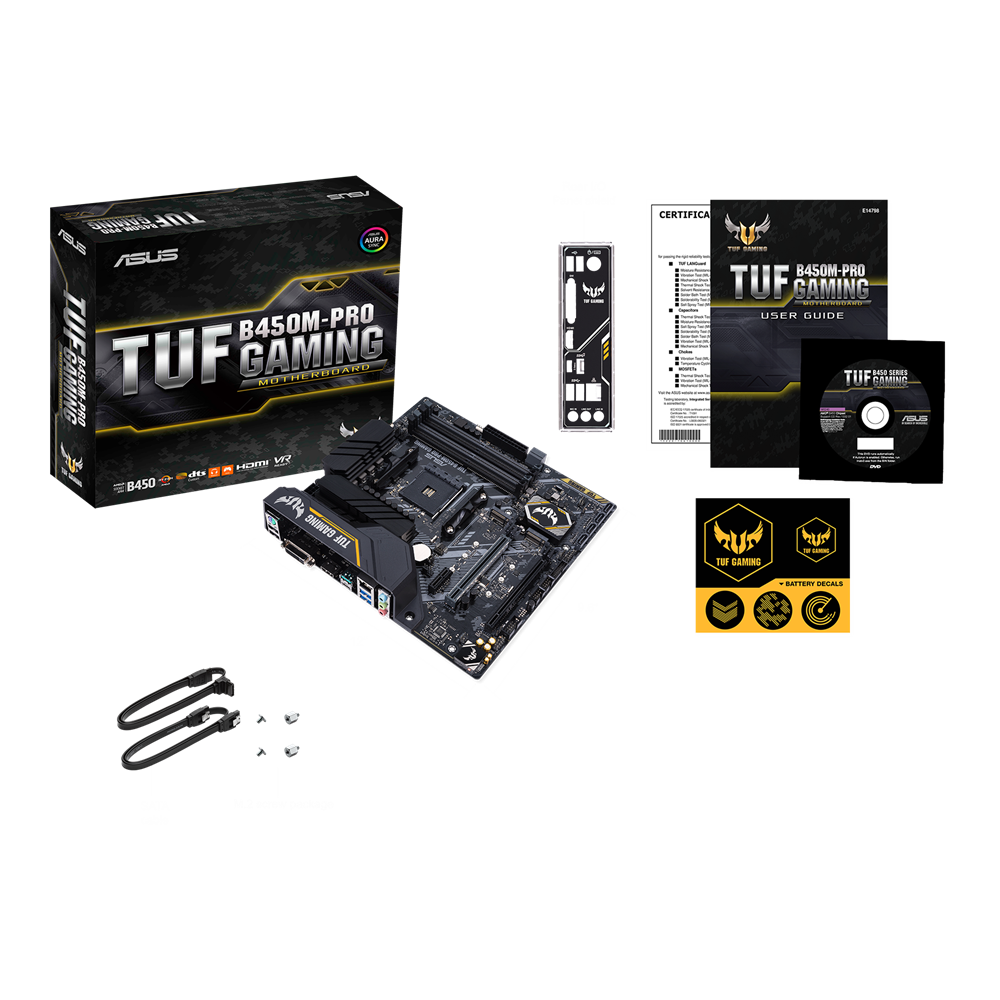

AccssoriesUser´s manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x TUF GAMING Sticker1 x TUF Certification card(s)
Form FactormATX Form Factor9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Software FeaturesASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA SyncAI Suite 3- Performance and Power Saving UtilityTurboV EVOEPUDIGI+ VRMFan Xpert 2+PC Cleaner- EZ update- System InformationASUS CPU-ZAI ChargerASUS EZ InstallerDAEMON ToolsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
Asus Special FeaturesASUS TUF PROTECTION- ASUS SafeSlot: Protect your graphics card Investment- ASUS Overvoltage Protection: World-class circuit-protecting power design- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!- ASUS DIGI+ VRM: Precision control for stable power- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!AURA :- Aura Lighting Control- Aura RGB Strip HeadersASUS Exclusive Features :- AI Suite 3- Ai Charger- PC CleanerASUS Quiet Thermal Solution :- Stylish Fanless Design Heat-sink solution & MOS Heatsink- ASUS Fan Xpert 2+ASUS EZ DIY :- ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeASUS Q-Design :- ASUS Q-Slot- ASUS Q-DIMM
