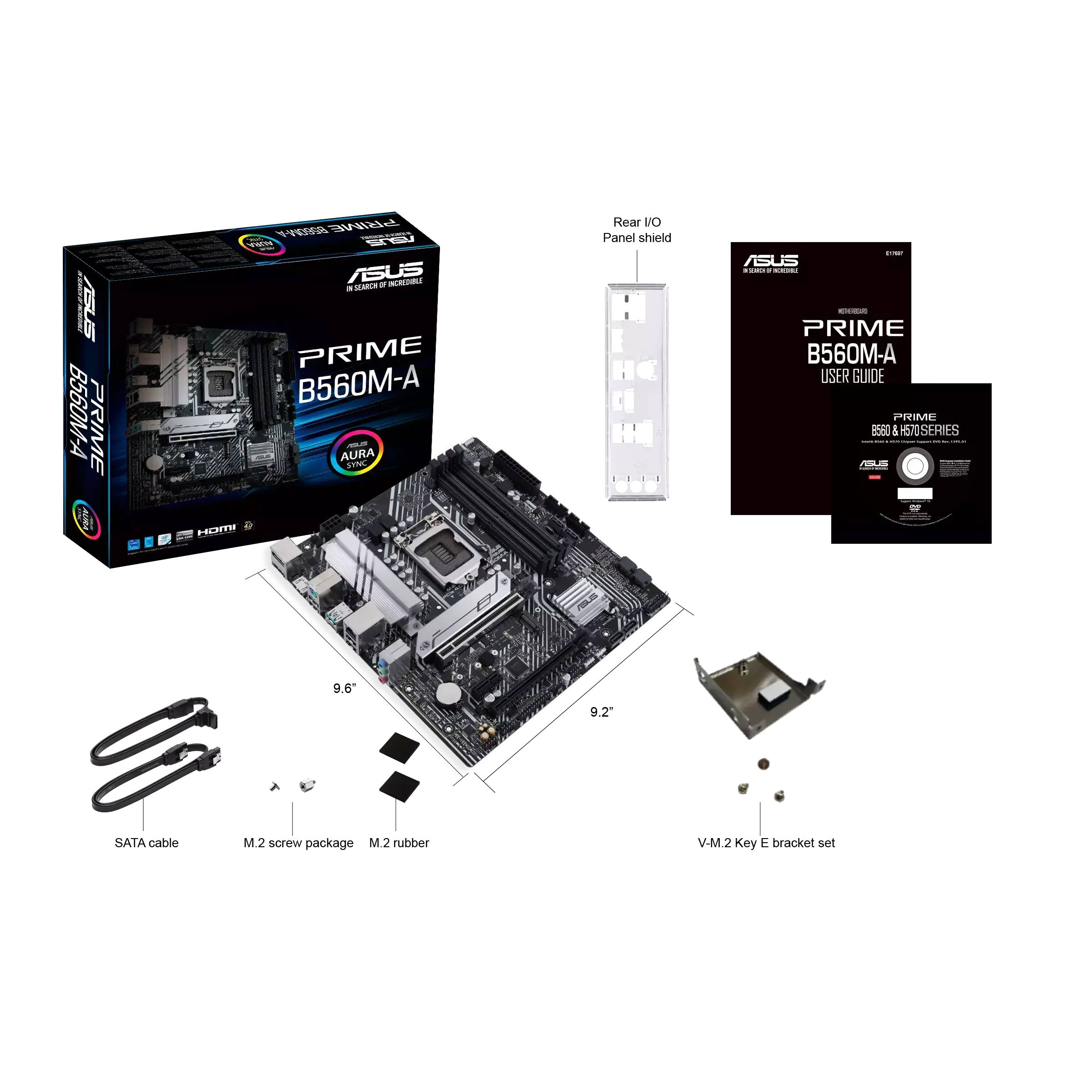

ASUS PRIME B560M-A 10th and 11th Gen Micro-ATX Motherboard
Supported Storage:Supports 2 x M.2 slots and 6 x SATA 6Gb/s portsIntel11th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUsIntel B560 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)6 x SATA 6Gb/s portsGraphics:1 x DisplayPort2 x HDMI port* Graphics specifications may vary between CPU types.** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.*** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.Display Port (s):1 x DisplayPort
Almost Gone! Only 1 left in stock
NPR 20,500
Prices include VAT & Taxes
Free delivery by Monday, March 2
Order within 2 hours
Quantity:
1
Free ShippingOver 5K
Warranty1 Year
BrandMotherboards
Modelasus-prime-b560m-a-motherboard-price-nepal
CategoryMotherboards
ChipsetB560
Supported CPUIntel LGA 1200 socket: Ready for 11th Gen Intel Core processorsSupports Intel 14 nm CPUSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Display Port (s)1 x DisplayPort
Supported Memory5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)OptiMem II
Supported StorageSupports 2 x M.2 slots and 6 x SATA 6Gb/s portsIntel11th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUsIntel B560 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)6 x SATA 6Gb/s ports
Graphics1 x DisplayPort2 x HDMI port* Graphics specifications may vary between CPU types.** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.*** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.
LAN Port (s)1 x Intel 1Gb EthernetASUS LANGuard
HDMI2 x HDMI port
Audio3 x Audio jacks
USB (s)Rear USB:Total 6 ports2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C)4 x USB 2.0 port(s) (4 x Type-A)Front USB:Total 7 ports2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports
Internal I/O PortsFan and Cooling related1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)2 x 4-pin Chassis Fan header(s)Power related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)6 x SATA 6Gb/s portsUSB2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 portsMiscellaneous2 x AURA Addressable Gen 2 header(s)2 x AURA RGB header(s)1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x LPT header1 x S/PDIF Out header1 x 20-3 pin System Panel header with Chassis intrude function
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Manufacturing Warranty2 Years
PCIIntel 11th &10th Gen Processors1 x PCIe 4.0/3.0 x16 slot(s)- Intel 11th Gen processors support PCIe 4.0 x16- Intel10th Gen processors support PCIe 3.0 x16Intel B560 Chipset1 x PCIe 3.0 x16 slot (supports x4 mode)1 x PCIe 3.0 x1 slots
TypeDDR4
BrandMotherboards
Categoryoffice-components/pc-components/motherboards
Form FactormicroATX24.4cm x 23.4cm
Bundled SoftwareASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA SyncAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ updateASUS CPU-ZAI ChargerDAEMON ToolsNorton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
Special FeaturesASUS 5X PROTECTION III- DIGI+ VRM- Enhanced DRAM Overcurrent Protection- ESD Guards- LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- Flexible M.2 heatsink- VRM heatsink designAURA Sync- AURA RGB header(s)- Addressable Gen 2 RGB header(s)
TPM (Trusted Platform Module )1 x SPI TPM header (14-1pin)
