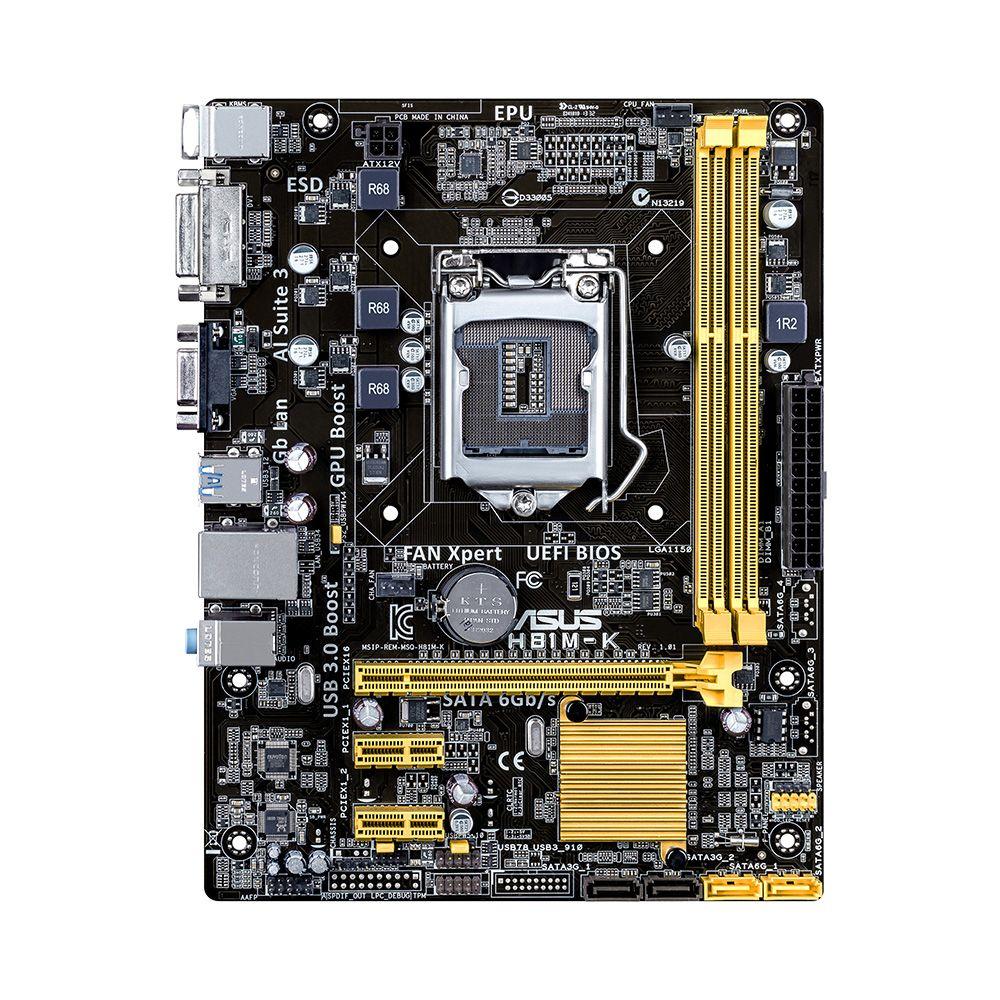

Asus H81M-K 4th Gen Motherboard
Storage:Intel® H81 chipset :2 x SATA 6Gb/s port(s), yellow,2 x SATA 3Gb/s port(s), dark brown,Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1
Almost Gone! Only 1 left in stock
NPR 15,500
Prices include VAT & Taxes
Free delivery by Monday, March 2
Order within 2 hours
Quantity:
1
Free ShippingOver 5K
Warranty1 Year
BrandMotherboards
Modelasus-h81m-k-4th-gen-motherboard
CategoryMotherboards
CPUIntel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® ProcessorsSupports Intel® 22 nm CPUSupports Intel® Turbo Boost Technology 2.0
ChipsetIntel® H81
Memory2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)* Hyper DIMM support is subject to the physical characteristics of individual CPUs.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
StorageIntel® H81 chipset :2 x SATA 6Gb/s port(s), yellow,2 x SATA 3Gb/s port(s), dark brown,Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1
LANRealtek® 8111G, 1 x Gigabit LAN Controller(s)
AudioRealtek ALC887/897 8-Channel High Definition Audio CODEC *2- Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback
USB PortsIntel® H81 chipset :2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)Intel® H81 chipset :6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
Support DiskDriversASUS UtilitiesEZ UpdateAnti-Virus Software (OEM Version)
Back I/O Ports1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x DVI1 x D-Sub1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 1 (blue)2 x USB 2.03 x Audio jack(s)
Expansion Slots1 x PCIe x162 x PCIe 2.0 x1
Internal I/O Ports1 x CPU Fan connector(s) (1 x 4 -pin)1 x Chassis Fan connector(s) (1 x 4 -pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x SATA 6Gb/s connector(s)2 x SATA 3Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel connector(s)1 x Front panel audio connector(s) (AAFP)1 x Internal speaker connector(s)1 x Clear CMOS jumper(s)
BIOS64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
BrandMotherboards
ModelH81M‐K
GraphicIntegrated Graphics ProcessorMulti-VGA output support : DVI/RGB ports- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz- Supports RGB with max. resolution 1920 x 1200 @ 60 HzMaximum shared memory of 1024 MB (for iGPU exclusively)Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Categoryoffice-components/pc-components/motherboards
Form FactoruATX Form Factor8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm )
ManageabilityWfM 2.0, DMI 2.0, WOL by PME, PXE
